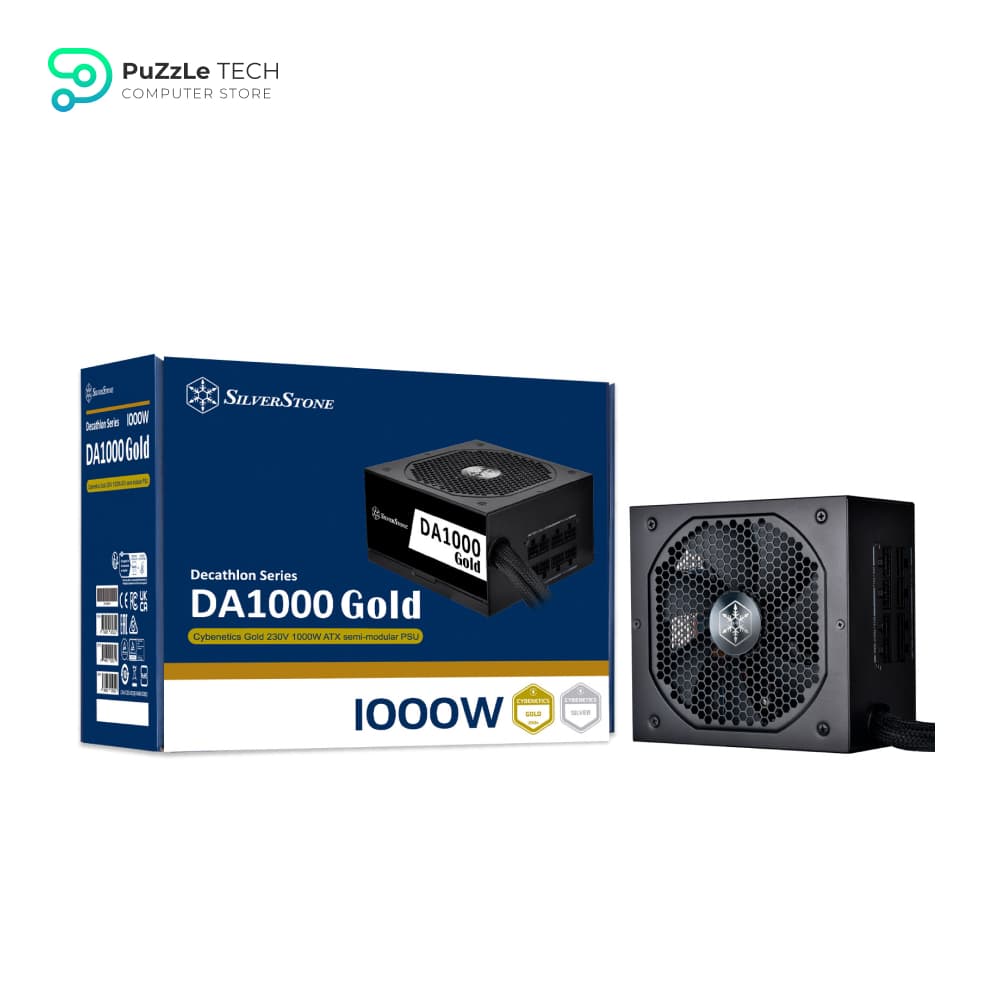

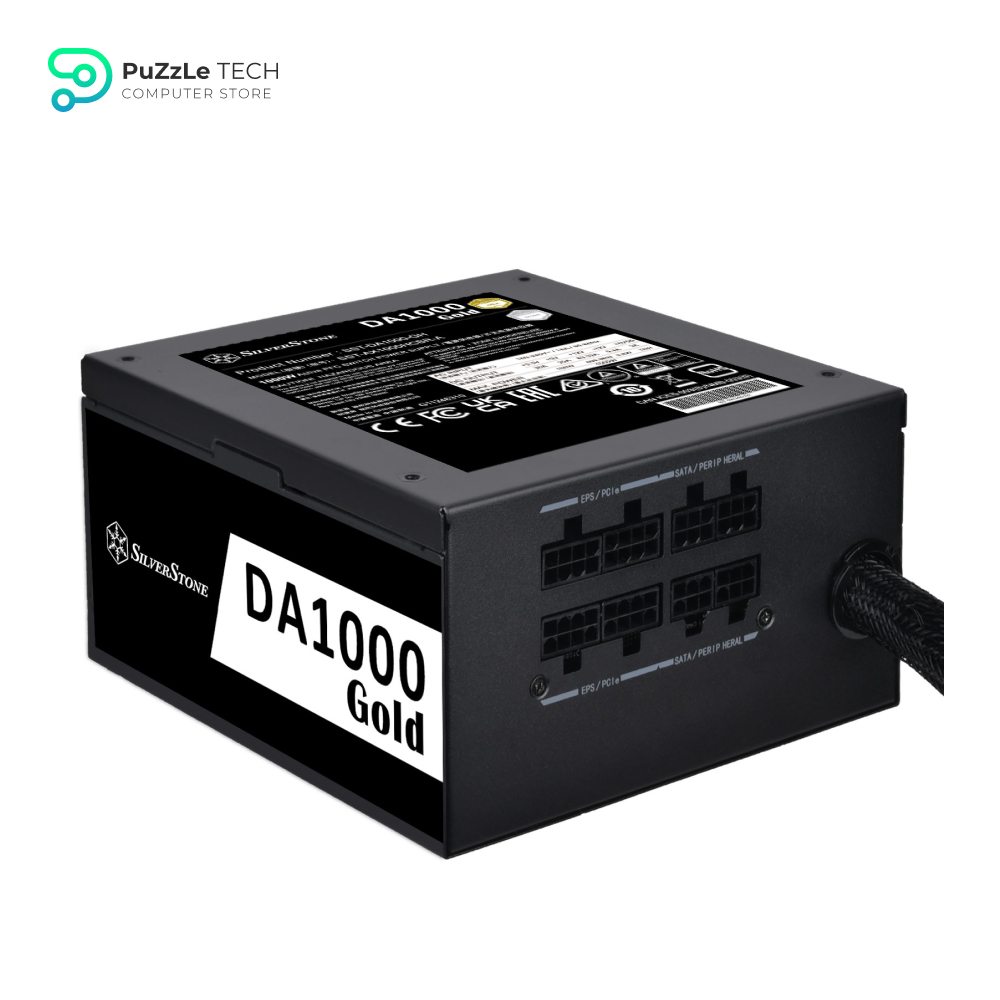

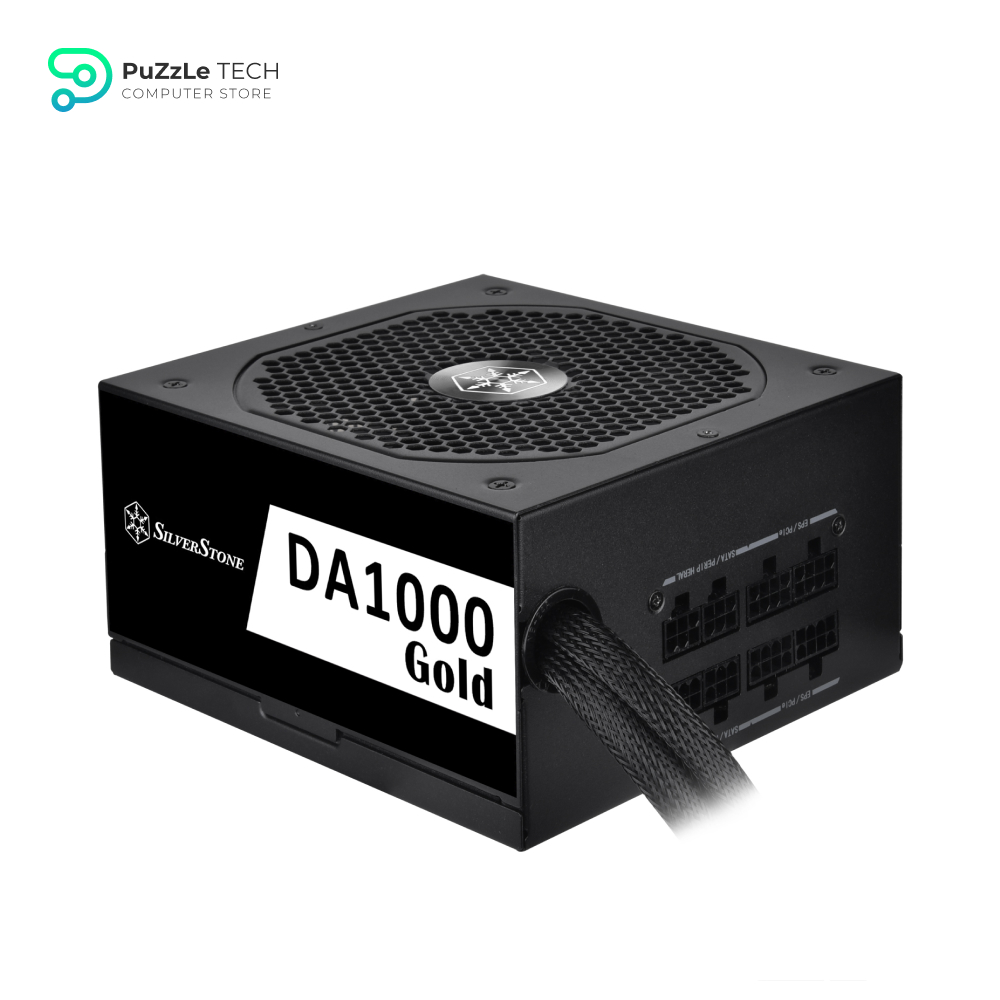

SilverStone DA1000 Gold Cybenetics Gold 1000W Semi-Modular ATX Power Supply
(0)5500.00 LE
Stock:In Stock
Model:DA1000 Gold
Brand:SilverStone
Quantity:
-
1
+
ADD TO CART
Add to wishlistSilverStone DA1000
DA1000 Gold
1000W Power Supply
80+ Gold PSU
Semi-Modular PSU
ATX Power Supply
SilverStone PSU
1000W PSU
Cybenetics Gold
PC Power Supply
Description
Specifications
Description
- SilverStone DA1000 Gold Cybenetics Gold 1000W Semi-Modular ATX Power Supply
18
/ 1
DA1000 Gold
Cybenetics Gold 1000W semi-modular ATX power supply
- High efficiency with 1000W Cybenetics 230V Gold / 115V Silver certification
- Semi-modular cabling design
- Japanese primary capacitors
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 140mm fan with 18 dbA minimum
- Dual EPS 8 pin with multiple PCIe 8 / 6 pin connectors
Cybenetics 230V Gold / 115V Silver Certification
Designed for Cybenetics 230V Gold / 115V Silver level of efficiency to reduce wasted heat and save on electricity

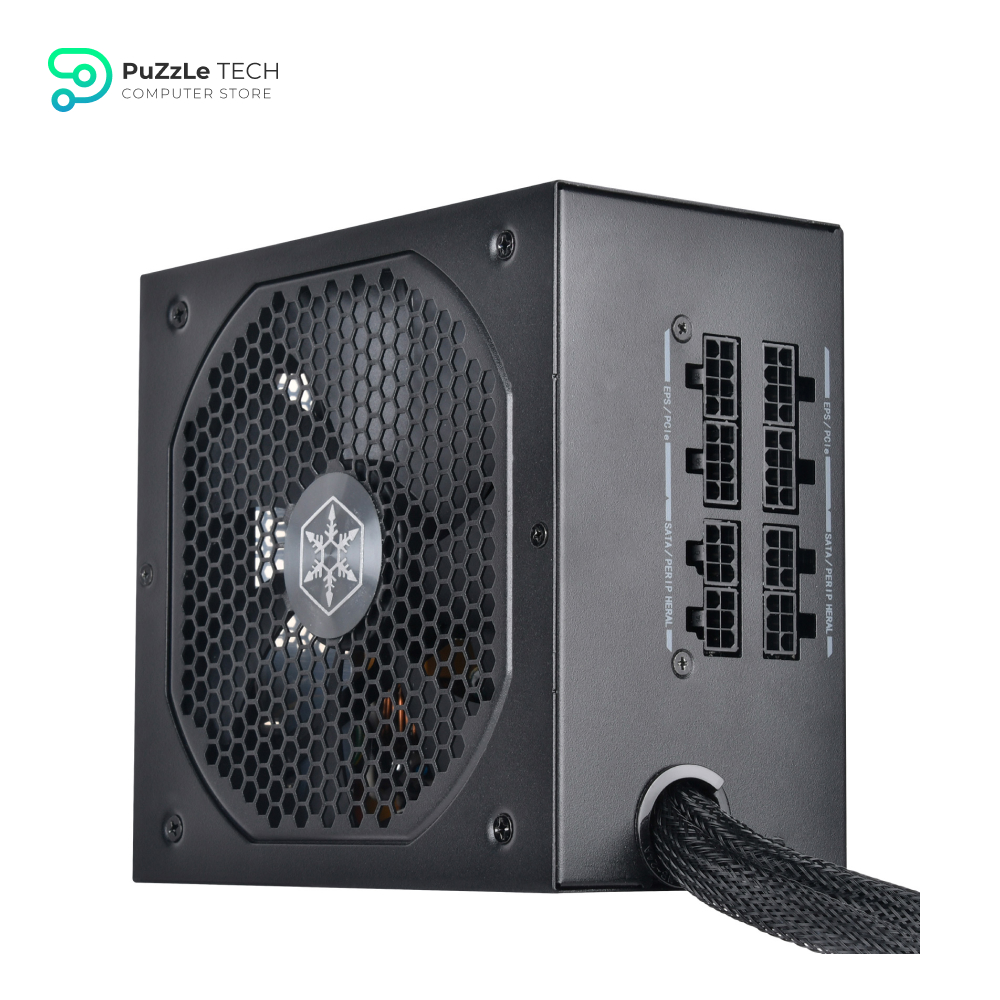

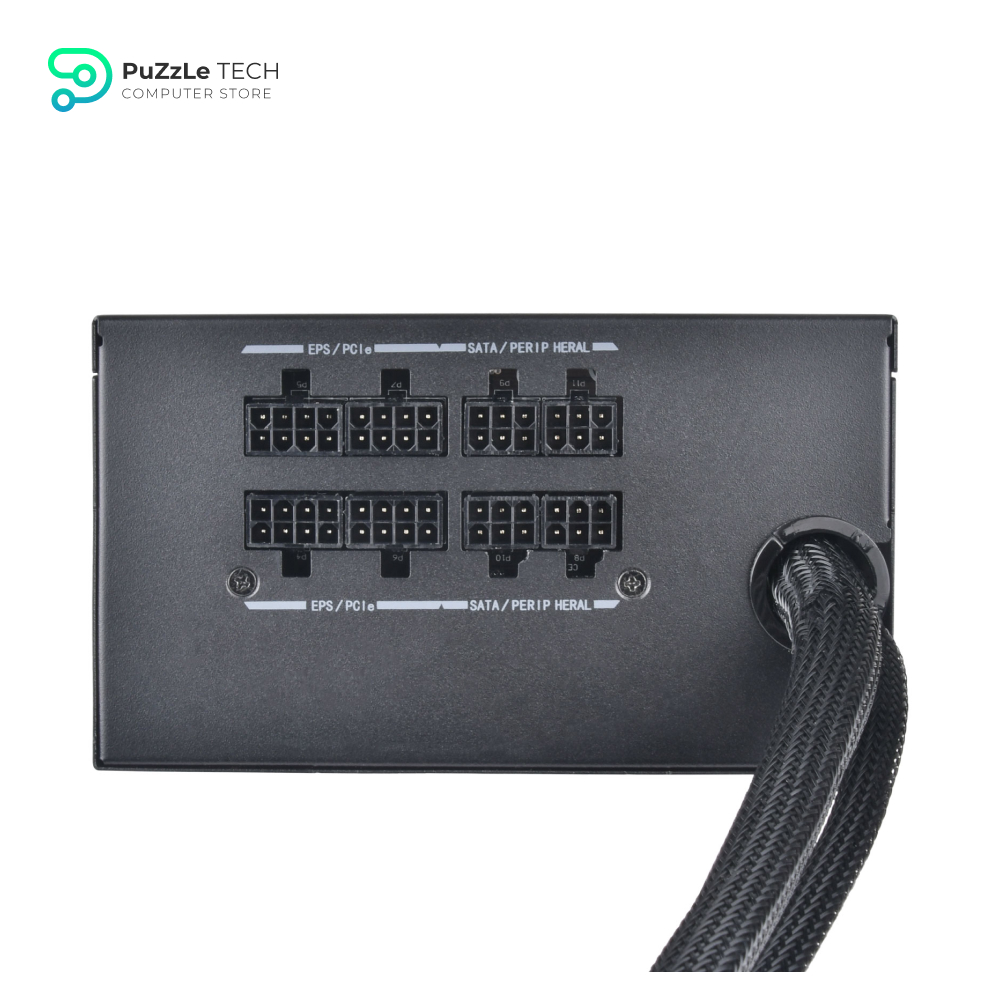

Semi-modular cabling design
Japanese primary capacitors
Ensure reliable power and long service lifespan

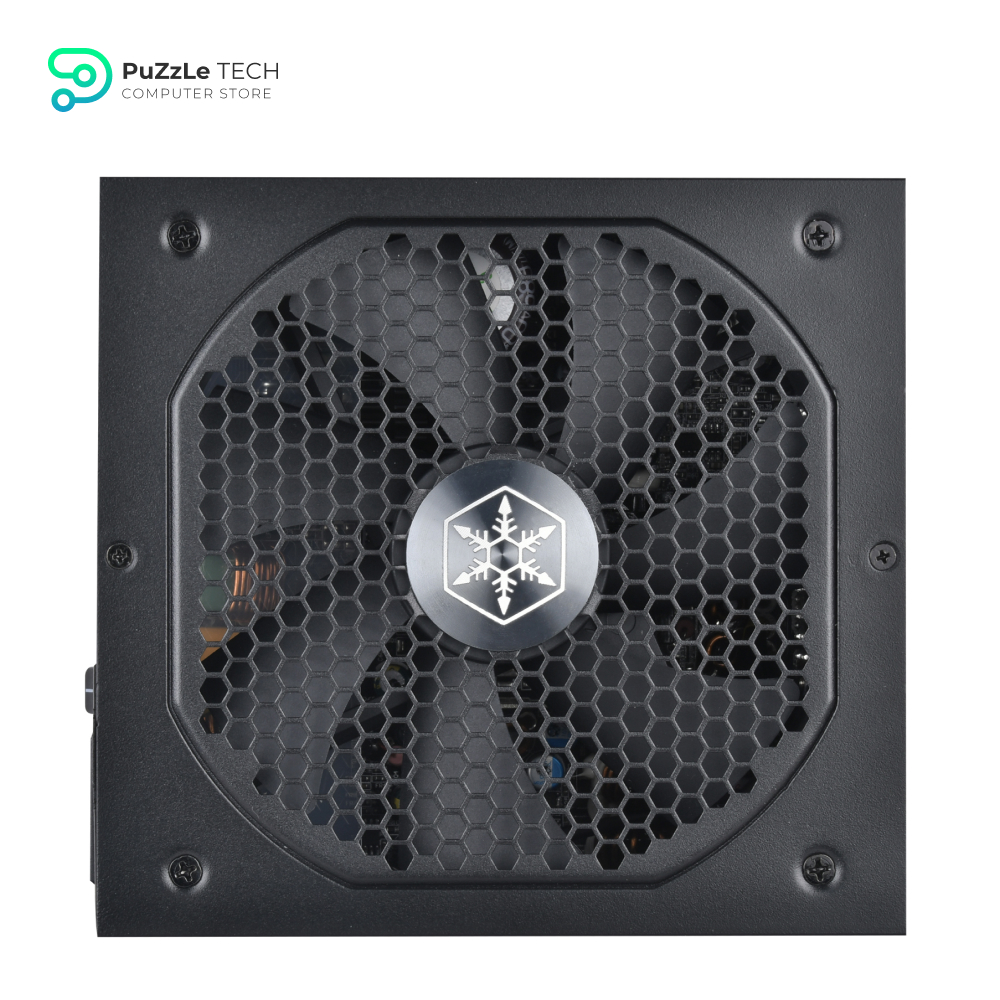

Silent running cooling fan
Built-in 140mm with excellent airflow and low operational noise, ideal for quiet home or office use
Advanced protections for safety and security
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

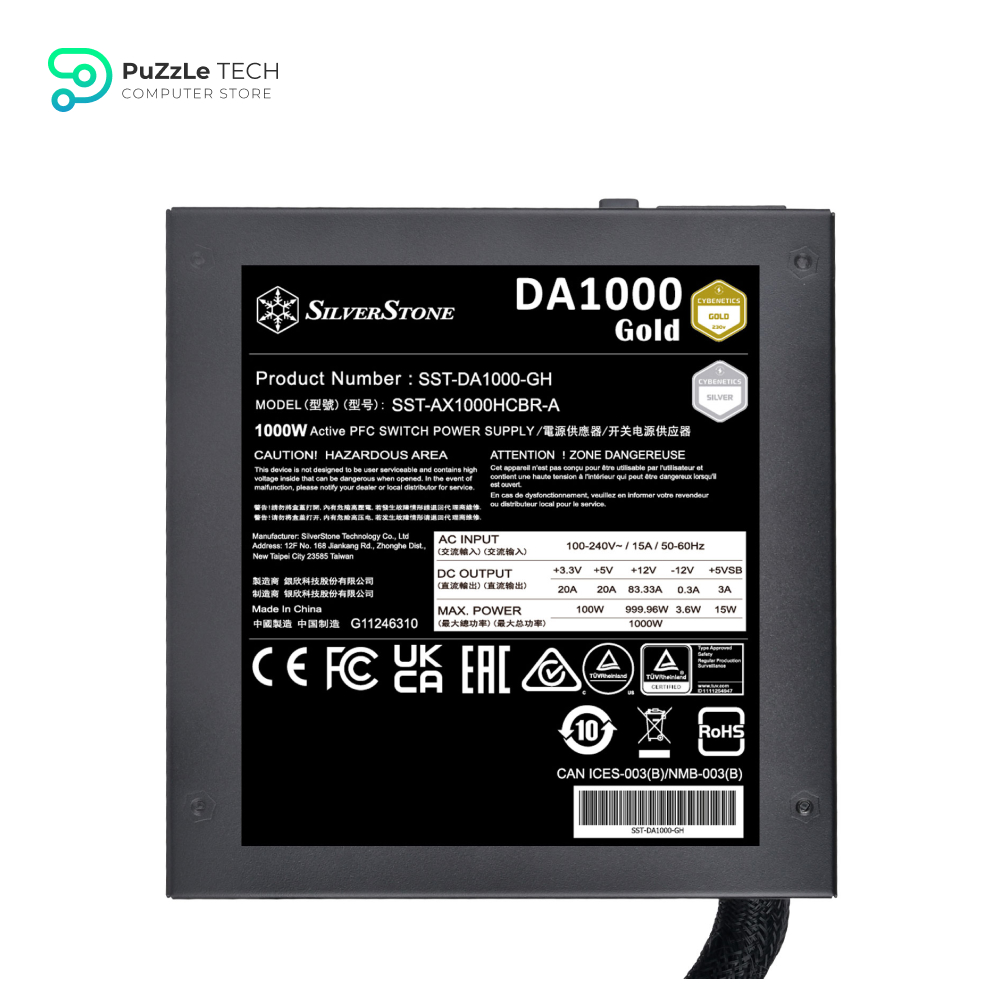

Product Specifications
Product No.
SST-DA1000-GH
Model (safety certification)
SST-AX1000HCBR-A
Color
Black (lead-free paint)
Max. DC Output
1000W
Power density
484W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 83.33A | 3A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±2.5% | ±2.5% |
| Ripple(mVp-p) | 50mV | 50mV | 70mV | 50mV | 80mV |
Combined +3.3V & +5V
100W
Combined +12V
999.66W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation

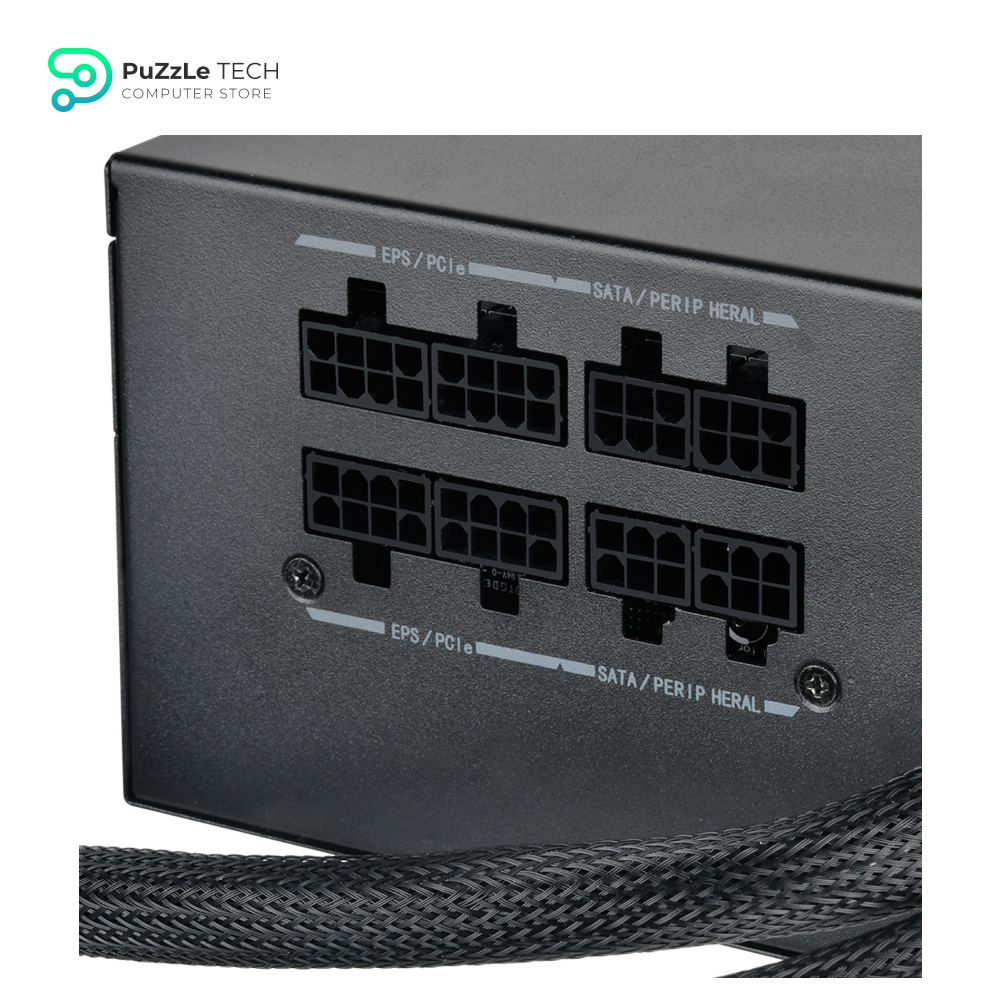

Connectors
1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector
8 x 8 / 6-Pin PCIe connector
12 x SATA connector
4 x 4-Pin Peripheral connector
1 x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector
8 x 8 / 6-Pin PCIe connector
12 x SATA connector
4 x 4-Pin Peripheral connector
Cooling System
Silent 140mm FDB fan
Noise Level
18 dBA minimum
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 160mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)
5.91" (W) x 3.39" (H) x 6.3" (D)
Weight
2.24 kg
