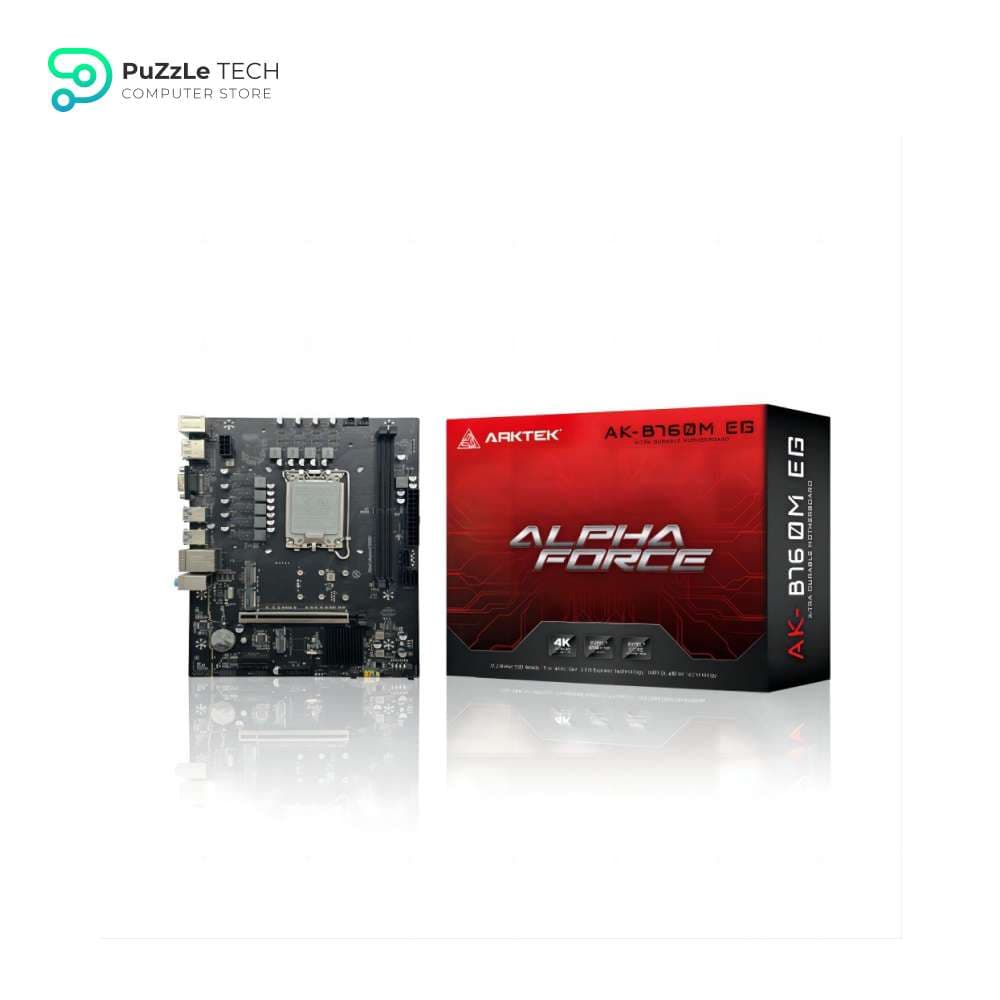

ARKTEK AK-B760M EG DDR5

Name: ARKTEK AK-B760M EG DDR5
Brand: ARKTEK
SKU: MB-INTEL-33
Price: 4500.00 EGP
Availability: InStock

(0)

4500.00 LE

Stock:Out of Stock

Model:B760

Brand:ARKTEK

Quantity:

Add to wishlist

ARKTEK

ARKTEK AK-B760M EG DDR5

ARKTEK B760M

ARKTEK B760M EG DDR5

B760M

DDR5 M.B

Description

Specifications

Description

ARKTEK AK-B760M EG DDR5

The present series of the ARKTEK AK-B760M EG DDR5 is the micro ATX motherboard on the base of Intel 12 and 13 generations. It has a LGA 1700 socket, comes with dual-channel DDR5 memory which can support up to 128GB and has three SATA3 slots. 0 ports. The same is also provided with two M. 2 sockets for fast SSDs and hard drives. For connectivity the Intel DH77EB has one Realtek 8111H/8106E 100/1000 LAN port and an on-board 6-channel HD audio. It also contains VGA that is compatible with other displays, a control panel to manage audio outputs and LED lights.

CPU Support	Support Intel® Gen 12 and Gen 13 Processor for LGA 1700 Socket
Chipset	Intel B760 Chipset
On-Board Graphics	Integrated Graphics Processor-Intel® HD Graphics support
Memory	Dual Channel DDR5 DIMM 6800MHz, Max up to 128GB (Single channel Max up to 64GB)
DIMM	2 x Memory Slots
LAN	1*Realtek 8111H/8106E 100/1000LAN Optional
Audio	Built-in 6-channel HD audio chip
SATA	3 X SATA3.0 2 X M.2 (1*M.2_SATA）
Real I/O	1 x PS/2, ,1 x VGA port, 1 x DP port, 1 x HDMI port, 2 x USB 2.0 port, 4 x USB 3.2 port, 1 x LAN jack, 3 x Audio jack
Internal I/O	1 x USB 2.0 header supports additional 2 USB 2.0 ports, 1 x USB 3.0 header supports additional 2 USB 3.0 ports
Expansion Slots	1 x PCI Express x16 slot 1 x PCI Express x1 slot
Form Factor	Micro-ATX (19 x 24 cm)
OS Support	Support Windows 7 / 8 / 8.1 / 10(x64)
Mounting	6 mounting holes
Accessories	1 x SATA cable, 1 x I/O Backboard, 1 x User Manual, 1 x Driver CD
Remark	All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
